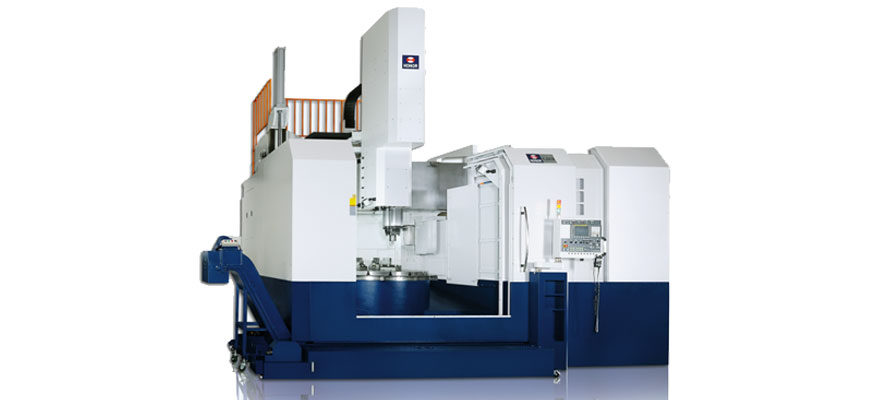

Heavy duty Ram type vertical turning and milling machine
Vertical Turning and Milling Machine
Heavy duty Ram type vertical turning and milling machine
General information
VL - 200CM
Table diameter: 2000mm (78")
Max.swing dia: 2500mm (98")
Max.turning dia: 2500mm (98")
ATC: 16
Live tool spindle speed: 2250 rpm
Specification
| Max. swing dia. | 2500 mm (98.42") |
| Max. turning dia. | 2500 mm (98.42") |
| Max. turning height | 1600 mm(62.99") |
| Table dia | 2000 mm(78.74") |
| Spindle speed | 5-200 rpm |
| ATC | 16 positions |
| Live spindle speed(CM) | 50-2250 rpm |
