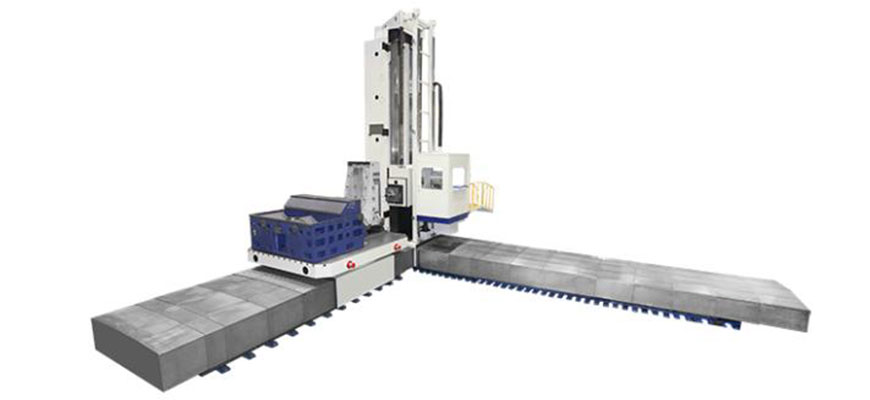

Floor type boring machine
Horizontal Boring and Milling Machine
Floor type boring machine
General information
Double-wall column structure guarantees the high rigidity, dimensional stability and good vibration damping capacity
Hydrostatic system with high rigidity, high damping and low friction features to keep the accurate positioning and machine accuracy during heavy cutting operations
The 3-step gear box integrated by high precision gears creates high spindle torque for heavy duty cutting
Specification
| Item | Specification | Unit | TBF-160 |
|---|---|---|---|
| Table | Table size | mm | No.1 table 3,000x3,500 |
| mm | No.2 table 2,500x3,000 | ||
| Max.loading capacity | kg | No.1 table 65,000 | |
| kg | No.2 table 40,000 | ||
| Spindle | Spindle speed | rpm | 6~3,500 |
| Stroke | X axis stroke | mm | 5,000~25,000 |
| Y axis stroke | mm | 3,000/ 4,000/ 5,000 | |
| Z axis stroke | mm | 1,200 | |
| W axis stroke | mm | 1,000 | |
| Feed | X/Y/Z/W axis rapid traverse | m/min | 20/20/20/20 |
| V axis rapid traverse | m/min | 10 | |
| ATC | Tool capacity | pc | 60 (Opt. 90/120) |
| Max.tool diameter | mm | Ø125 | |
| Max.tool diameter (w/o adjacent tool) | mm | Ø420 | |
| Max.tool length | mm | 600 | |
| Max.tool weight | kg | 35 |
