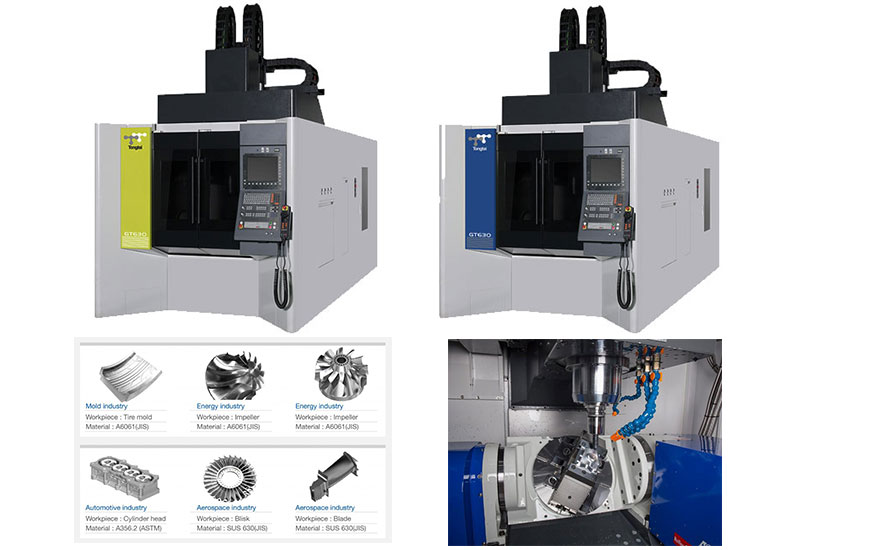

5 Axis Vertical Machining Center

General information

15,000 rpm Built-in spindle The spindle is equipped with oil-air lubricated bearings and oil-cooling cartridge, it constrains the thermal generation and reduces the thermal expansion in spindle

Temperature control system will alarm and stop manufacturing while the spindle is overheated in order to prevent bearings from damage

4 bearings are arranged in DBB type on front side to provide high rigidity while heavy duty cutting

BBT dual-contact tool holder is equipped to enhance the stability and machining quality
